Nominal Capacity: 2 to 14 kW
Explosion Protection: II 2 G Ex db eb h ia IIC T4 Gb
Compliance: European Directive 2014/34/EU (ATEX 114)
Applied Standards:
EN 60079-0:2012 / A11:2013
EN 60079-1:2014
EN 60079-7:2015 / A1:2018
EN 60079-11:2012
EN 80079-36:2016
EN 80079-37:2016
Certification: EU Type Examination Certificate No. KIWA 19ATEX0049X
Ambient Temperature Range: -20 °C to +55 °C
Power Supply: 220 – 240 VAC, 50 Hz (Optional: 400 VAC, 3-phase, 50 Hz)
Fin Spacing: 4 or 6 mm
Refrigerant: R513A
The Artidor Zone 1 Evaporator AR-050 is an ATEX-certified air handling and evaporator unit designed to provide safe temperature control in hazardous environments. It is an ideal solution for chemical storage facilities, flammable material warehouses, and industrial battery charging stations.

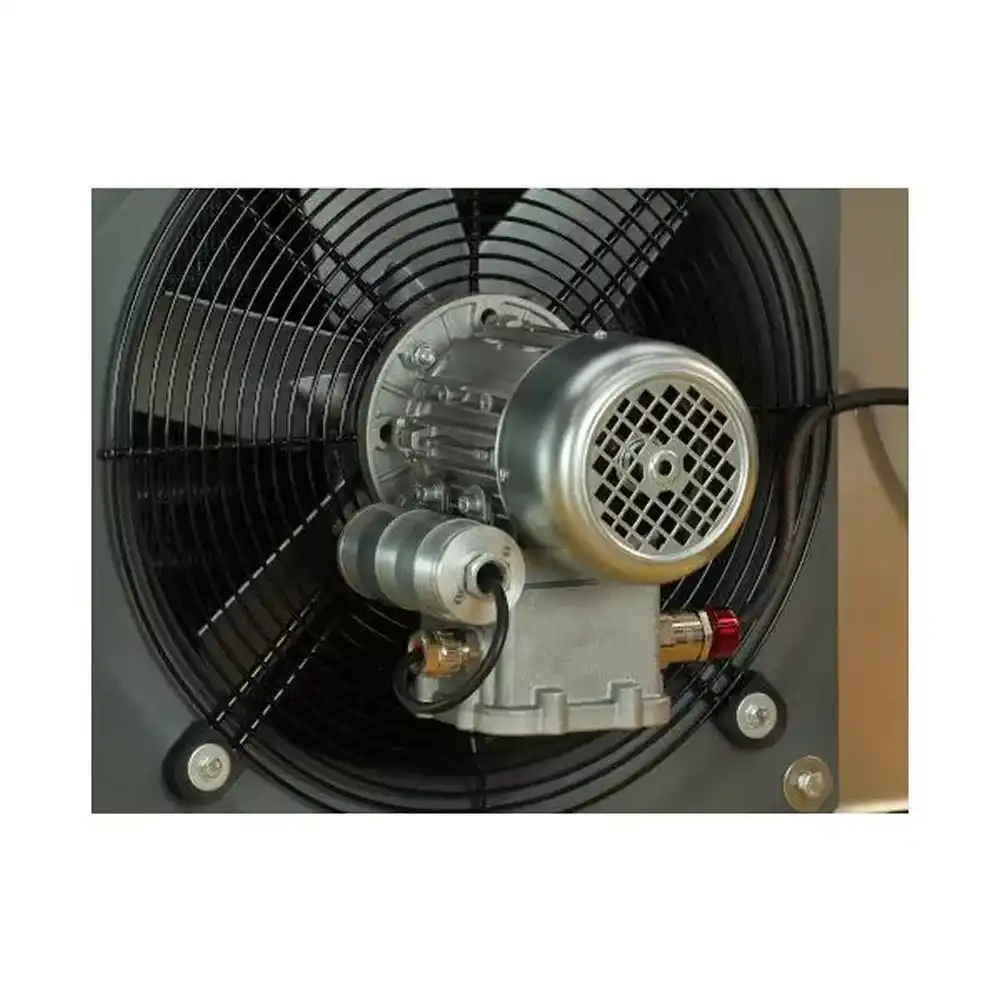

Flameproof electric motor
Antistatic aluminum fan blades
Intrinsically safe control circuits
Finned copper tube heat exchangers
Aluminum fin design
Compatible with R513A refrigerant
Compact Design: Easy installation in confined spaces
Energy Efficiency: Reduced power consumption for cost savings
Flexible Configuration: Optional Zone 2 compliant version
Chemical and petrochemical plants
Industrial battery charging rooms
Production facilities with flammable gases
Complies with ATEX 2014/34/EU (II 2G IIC T4)
CE marked
IP54 protection class
Project-based customized solutions
Technical consultancy and installation support
Spare parts and maintenance services
100% European manufacturing quality
Long service life and robust design
Wide service network
| Özellik | Değer |
|---|---|
| Cooling Capacity | 5 kW |
| Operating Temperature | -20°C ~ +40°C |
| Air Flow Rate | 1200 m³/h |
| Weight | 28 kg |
| Brand | ARTIDOR |
|---|---|
| Category | Evaporators |
