‹ › BARTEC - LBH open bends and pulling boxes

Click to enlarge

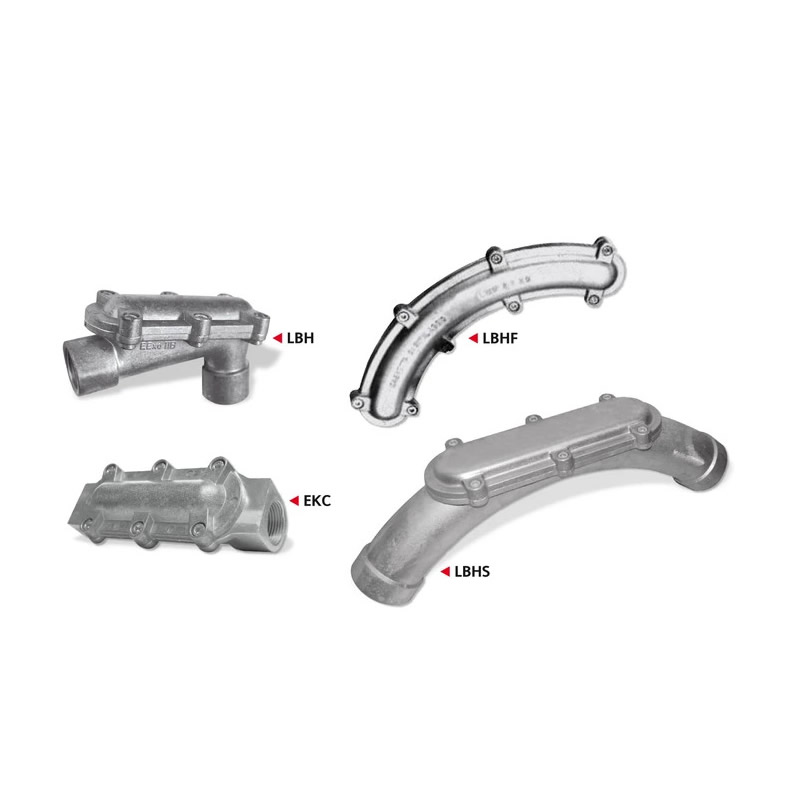

BARTEC - LBH open bends and pulling boxes

BARTEC

LBH open bends and pulling boxes from BARTEC are certified for Zone 1 and Zone 21 and are offered in Ex db, Ex eb and Ex tb protection concepts. Sealed to IP66, they cover an operating temperature range of -60 °C to +130 °C and hold ATEX, IECEx and Inmetro approvals.

Get a Quote
Zone 1 / 21 Protection IP66 Temperature -60°C … 130°C Certification ATEX · IECEx

Categories: Ex-proof Products, Ex-proof Connection Fittings

Share:

Area classification and protection

  • Zone class: Zone 1, 21
  • Explosion-proof protection: Ex II 2 G Ex db IIC Gb; Ex II 2 G Ex eb IIC Gb; Ex II 2 D Ex tb IIIC Db
  • IP rating: IP66
  • Operating temperature: -60 °C to +130 °C

Certification

  • ATEX certificate: INERIS 16 ATEX 0007X
  • IECEx: IECEx INE 16.0014X (LBH)
  • Inmetro: CEPEL 13.2229U
Need this product for your project? Our engineers help you choose the right model and prepare a quotation.
Get a Quote Documents
