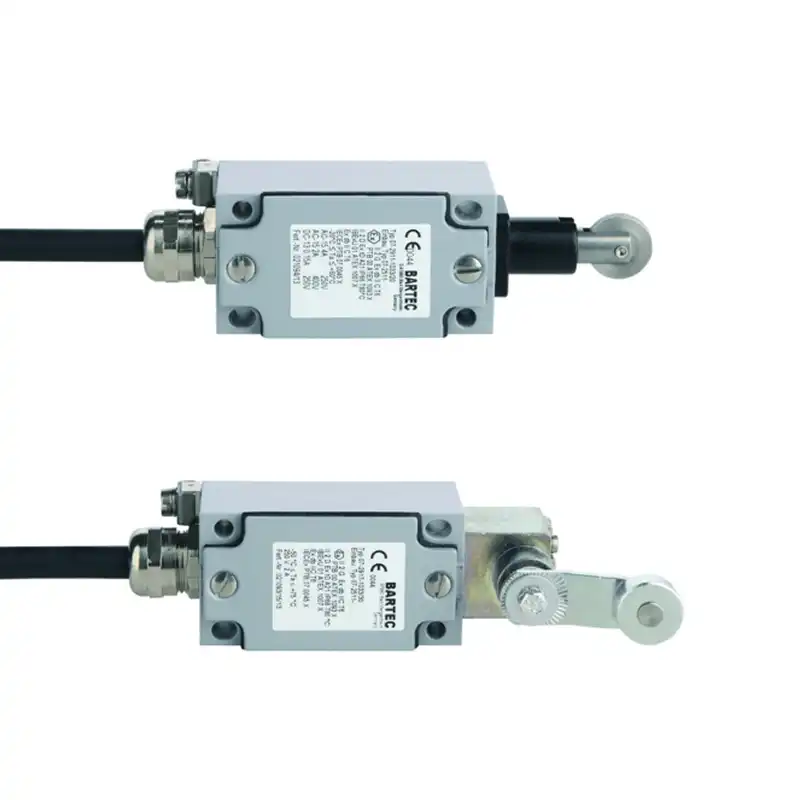

BARTEC - Position switch Aluminium

BARTEC

BARTEC's aluminium position switch is approved for Zone 1 and Zone 21 duty, with flameproof protection in Ex db IIC to temperature classes T6 and T5. It is sealed to IP66 and rated across an ambient window of -60 °C ≤ Ta ≤ +75 °C under ATEX and IECEx certificates issued by EPS.

Zone 1 / 21 Protection IP66 Certification ATEX · IECEx

Explosion protection data

  • Zone class: Zone 1, 21
  • Gas protection: Ex II 2G Ex db IIC T6, T5 Gb
  • Dust protection: Ex II 2D Ex tb IIIC T80°C, T95°C Db
  • IP rating: IP66
  • Operating temperature: -60 °C ≤ Ta ≤ +75 °C

Certification

  • ATEX certificate: EPS 14 ATEX 1766 X
  • IECEx: IECEx EPS 14.0092 X
Need this product for your project? Our engineers help you choose the right model and prepare a quotation.
