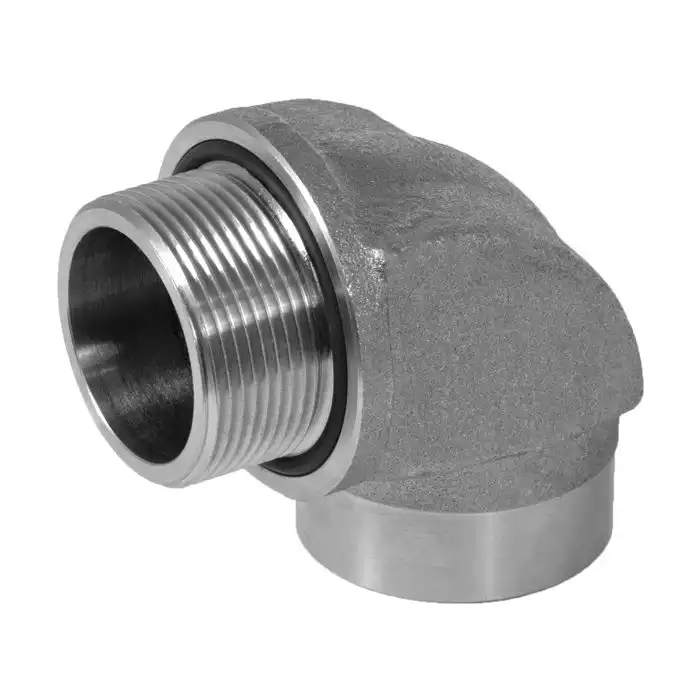

CMP Products – 787 | 90 Degree Adaptor for Explosive Atmosphere

CMP Products

Available in brass, nickel plated brass, aluminium, stainless steel

Technical Details

  • Protects cables from excessive bending stress
  • General purpose / industrial version available
  • Supplied with male or female threads
  • Can be supplied with thread conversion
  • Equipment interface ‘O’ ring seal available
  • -60°C to +200°C
  • Globally marked, IECEx, ATEX & cCSAus
  • Can be used with 737 (not Ex d direct entry applications)

GET INFORMATION

Get a Quote
Temperature -60°C … 200°C Certification ATEX · IECEx

Categories: Ex-proof Products, Cable Equipment, All Cable Equipment, Ex-proof All Products, Cable Gland Adaptors / Reducers

Share:

Technical Table

Ordering Reference Male
Thread Size ‘A’		 Minimum
Thread Length ‘E’		 Bore
Diameter ‘C’		 Female Thread Size Protrusion Length ‘D’ Protrusion Length ‘F’ Width ‘B’ Width ‘B’
787DM2M2 M20 X 1.5 15.3 14.0 M20 X 1.5 29.6 41.0 24.0 7
787DM3M3 M25 X 1.5 15.3 18.6 M25 X 1.5 36.3 49.3 29.0 10
787DM4M4 M32 X 1.5 15.3 25.6 M32 X 1.5 45.2 56.3 36.0 15
787DM5M5 M40 X 1.5 15.3 33.6 M40 X 1.5 54.2 64.8 44.0 25
787DM6M6 M50 X 1.5 15.3 41.0 M50 X 1.5 68.3 74.0 54.0 30
787DM7M7 M63 X 1.5 15.3 50.0 M63 X 1.5 97.0 104.3 75.3 45
787DM8M8 M75 X 1.5 15.3 61.3 M75 X 1.5 97.0 111.3 79.5 45
787DM9M9 M90 X 2.0 15.3 80.0 M90 X 2.0 100.0 131.3 110.0 45
787DM10M10 M100 X 2.0 15.3 91.0 M100 X 2.0 110.0 141.3 115.0 45
Dimensions displayed in millimeters unless otherwise stated

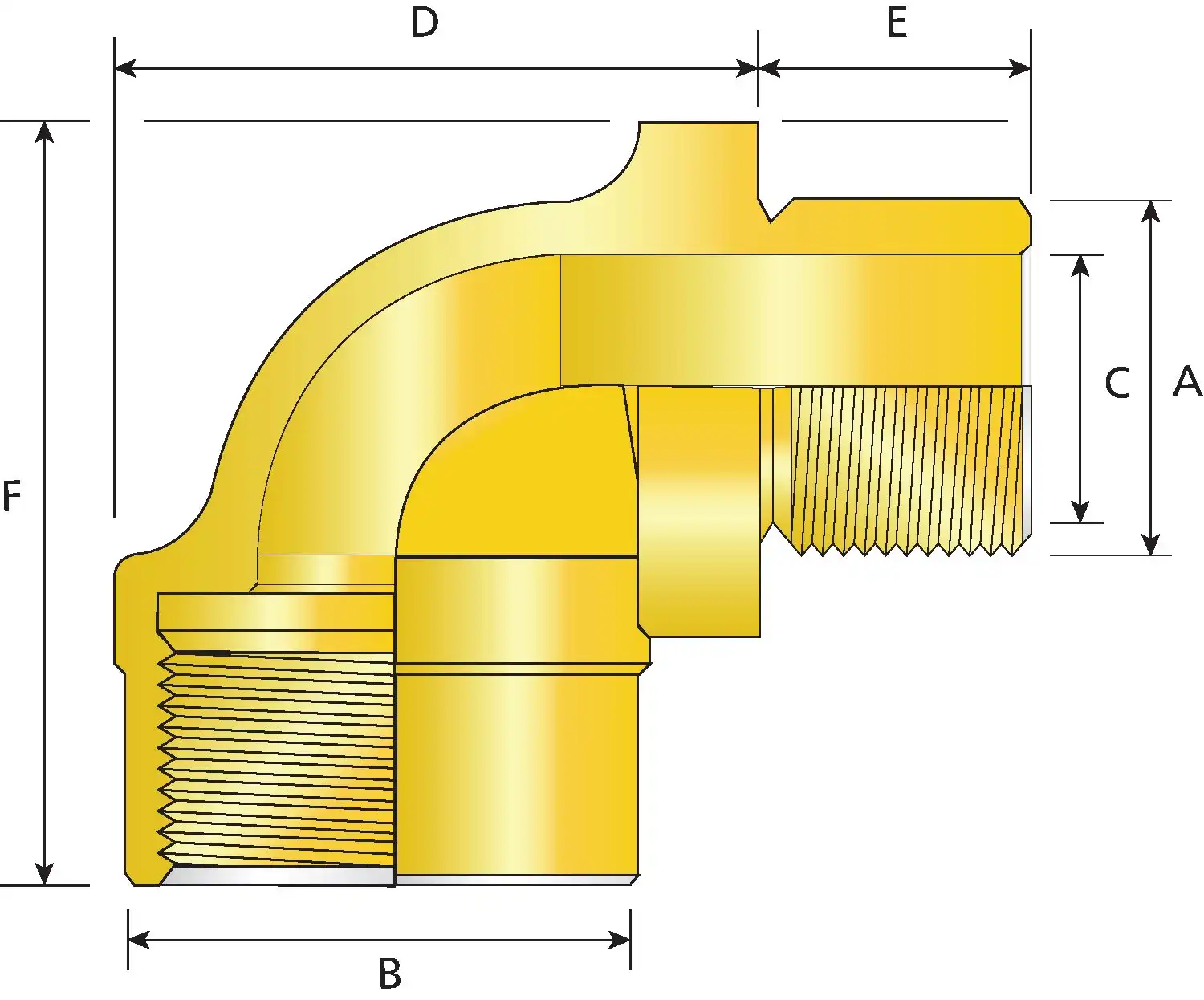

Technical Drawing
