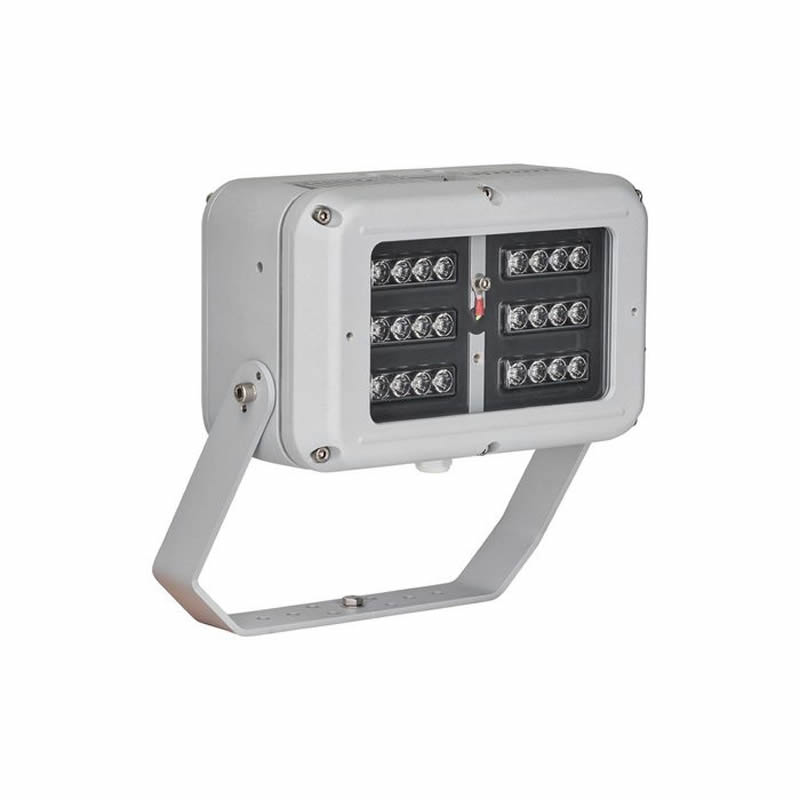

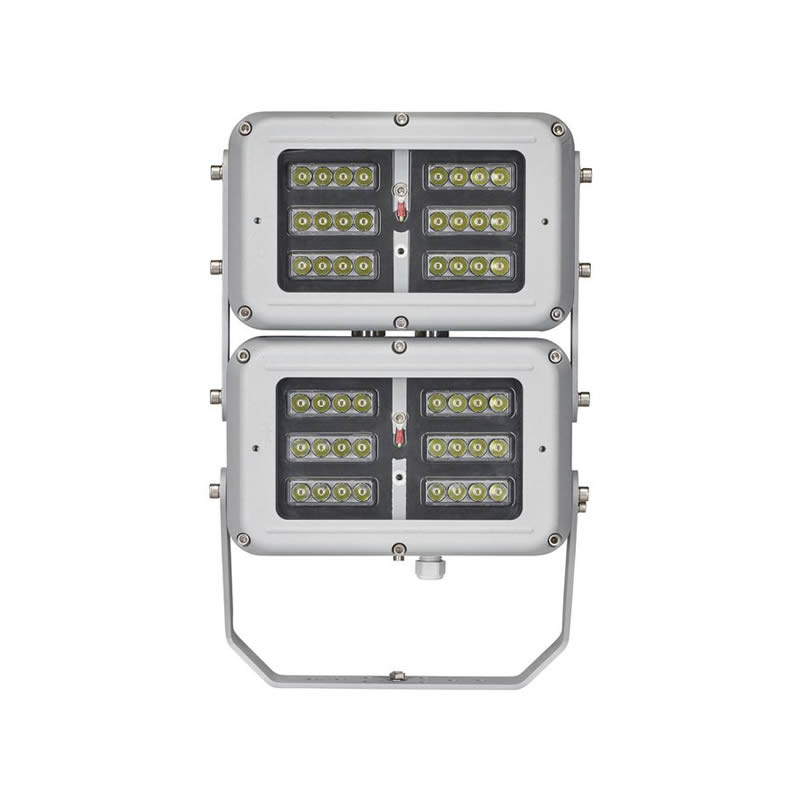

RAYTEC LED – SPARTAN SPX Ex-proof Projector for Ex-Zone 1- 21

Technical Specifications:

• Ex-proof Zone Class: hazardous areas – Zone 1 (Gases) – Zone 21 (Dusts)
• Ex-proof Protection (Gases): Ex II 2 G Ex e mb op is IIC T4 Gb
• Ex-proof Protection (Dusts): Ex II 2 D Ex tb op is IIIC T82°C Db
• Protection Degree: IP66 / IP67
• Power supply: 110-254V 50/60 Hz AC
• Low voltage: 18-48V AC and 18-69V DC
• Extra low voltage: 12V AC/DC
• Ambient Temperature: -50 °C ÷ +55 °C (The low temperature is -20°C for the battery-powered Emergency features.)
• Body Material: Corrosion Resistant Aluminum, epoxy powder coated
• ATEX Certificate: CML13ATEX3007
• IECEx Certificate: IEC Ex CML 14.0001
• OTHER AVAILABLE CERTIFICATES : UL/CSA, including C1D2; ABS Cert. # 15-LD1364539-1-PD
