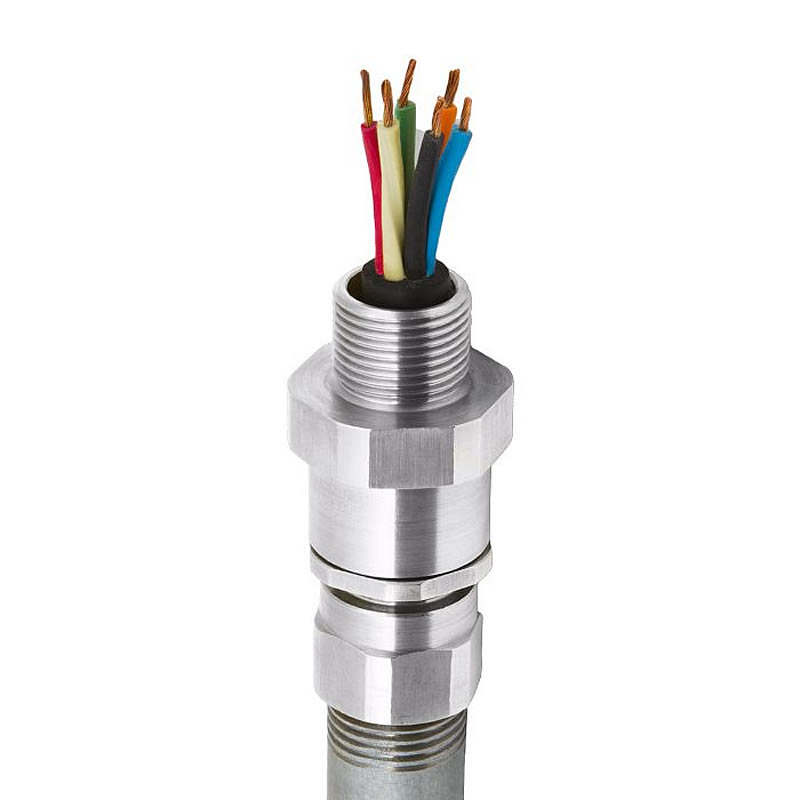

CMP Products – A2FRC | Ex eb, Ex db, Ex nR, Ex ta | Ex-Proof Cable Gland

Ex eb, Ex db, Ex nR, Ex ta | Cable Gland for Use in Explosive Atmospheres
Suitable for all types of unarmoured and braided armoured cables (installed within conduit).

FEATURES
- Compatible with all unarmoured and braided cables (within conduit)
- Designed for use with both rigid and flexible conduits (when used with appropriate conduit fittings)
- Push-fit connection design for easy installation
- Incorporates a displacement type flameproof seal
- Wide operating temperature range: -60˚C to +130˚C
- Holds global certifications: UKEX, IECEx, ATEX, and CSA

Technical Data Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Female Connection Thread ‘G’	Female Connection Thread (NPT) ‘G’	Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric male and female)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option			Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric male and female)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT			Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾”	M20	½’	3.2	8.7	24.0	26.4	46.9	20S16	A2FRC	1RA	PVC04	0.11
20S	M20	15.0	½’	19.9	¾”	M20	½’	6.1	11.7	24.0	26.4	46.1	20S	A2FRC	1RA	PVC04	0.11
20	M20	15.0	½’	19.9	¾”	M20	½’	6.5	14.0	27.0	29.7	47.9	20	A2FRC	1RA	PVC05	0.11
25	M25	15.0	¾’	20.2	1″	M25	¾’	11.1	20.0	36.0	39.6	56.1	25	A2FRC	1RA	PVC09	0.20
32	M32	15.0	1′	25.0	1 ¼”	M32	1′	17.0	26.3	41.0	45.1	55.5	32	A2FRC	1RA	PVC10	0.24
40	M40	15.0	1 ¼’	25.6	1 ½”	M40	1 ¼’	23.5	32.2	50.0	55.0	57.7	40	A2FRC	1RA	PVC13	0.33
50S	M50	15.0	1 ½’	26.1	2″	M50	1 ½’	31.0	38.2	55.0	60.5	59.1	50S	A2FRC	1RA	PVC15	0.43
50	M50	15.0	2′	26.9	2 ½”	M50	2′	35.6	44.0	60.0	66.0	64.3	50	A2FRC	1RA	PVC18	0.44
63S	M63	15.0	2′	26.9	2 ½”	M63	2′	41.5	49.9	70.5	77.6	61.6	63S	A2FRC	1RA	PVC21	0.72
63	M63	15.0	2 ½’	39.9	3″	M63	2 ½’	47.2	55.9	75.0	82.5	71.0	63	A2FRC	1RA	PVC23	0.64
75S	M75	15.0	2 ½’	39.9	3″	M75	2 ½’	54.0	61.9	84.0	92.4	70.1	75S	A2FRC	1RA	PVC26	0.96
75	M75	15.0	3′	41.5	3 ½”	M75	3′	61.1	67.9	84.0	92.4	73.2	75	A2FRC	1RA	PVC26	0.86
90	M90	24.0	3 ½’	42.8	4″	M90	3 ½’	66.6	79.9	108.0	118.8	106.3	90	A2FRC	1RA	PVC31	2.25
Dimensions displayed in millimeters unless otherwise stated

Technical Drawing

Description

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Female Connection Thread ‘G’	Female Connection Thread (NPT) ‘G’	Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric male and female)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option			Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric male and female)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT			Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾”	M20	½’	3.2	8.7	24.0	26.4	46.9	20S16	A2FRC	1RA	PVC04	0.11
20S	M20	15.0	½’	19.9	¾”	M20	½’	6.1	11.7	24.0	26.4	46.1	20S	A2FRC	1RA	PVC04	0.11
20	M20	15.0	½’	19.9	¾”	M20	½’	6.5	14.0	27.0	29.7	47.9	20	A2FRC	1RA	PVC05	0.11
25	M25	15.0	¾’	20.2	1″	M25	¾’	11.1	20.0	36.0	39.6	56.1	25	A2FRC	1RA	PVC09	0.20
32	M32	15.0	1′	25.0	1 ¼”	M32	1′	17.0	26.3	41.0	45.1	55.5	32	A2FRC	1RA	PVC10	0.24
40	M40	15.0	1 ¼’	25.6	1 ½”	M40	1 ¼’	23.5	32.2	50.0	55.0	57.7	40	A2FRC	1RA	PVC13	0.33
50S	M50	15.0	1 ½’	26.1	2″	M50	1 ½’	31.0	38.2	55.0	60.5	59.1	50S	A2FRC	1RA	PVC15	0.43
50	M50	15.0	2′	26.9	2 ½”	M50	2′	35.6	44.0	60.0	66.0	64.3	50	A2FRC	1RA	PVC18	0.44
63S	M63	15.0	2′	26.9	2 ½”	M63	2′	41.5	49.9	70.5	77.6	61.6	63S	A2FRC	1RA	PVC21	0.72
63	M63	15.0	2 ½’	39.9	3″	M63	2 ½’	47.2	55.9	75.0	82.5	71.0	63	A2FRC	1RA	PVC23	0.64
75S	M75	15.0	2 ½’	39.9	3″	M75	2 ½’	54.0	61.9	84.0	92.4	70.1	75S	A2FRC	1RA	PVC26	0.96
75	M75	15.0	3′	41.5	3 ½”	M75	3′	61.1	67.9	84.0	92.4	73.2	75	A2FRC	1RA	PVC26	0.86
90	M90	24.0	3 ½’	42.8	4″	M90	3 ½’	66.6	79.9	108.0	118.8	106.3	90	A2FRC	1RA	PVC31	2.25
Dimensions displayed in millimeters unless otherwise stated

Additional information
