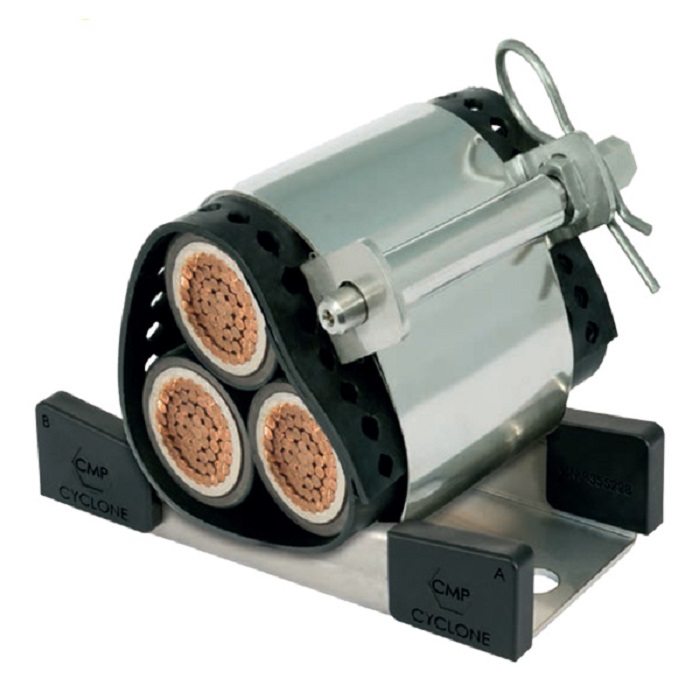

CMP Products – CYCLONE-3 Series Cable Cleats

Technicial Specifications:

• Certificate obtained from an independent organization in accordance with IEC 61914:2009 Standard
• 180kA short circuit resistance
• 316L Stainless Steel Body
• Structure resistant to weather conditions and sunlight (UV)
• -50°C …+40°C standard operating temperature
• Fixing range for Trefoil cables 24 mm – 145 mm
• Fixing range for single cables 36 mm – 165 mm
• Fixing range for quad cables 21 mm – 124 mm
• Single bolt (M12) or double bolt (M10) fixing design
