A2F Single Seal (Unarmoured Cable) Ex-proof Cable Gland

CMP Products

Technical Details

  • One-squeeze ex-proof cable gland, compatible for non-armoured cables
  • Cable gland suitable for use in ex-proof (suitable for use in explosive atmospheres) environments
  • Body Material: Nickel plated brass – Brass – Stainless Steel – Aluminum
  • IP Protection Class: IP66, IP67, IP68
  • Operating Temperature : -60°C to +130°C standard
  • Certification group: CE, ATEX, IECEx, CSA, EAC, Marine
  • Zone Class: Zone 1 / Zone 20
  • Has Deluge Protection feature

GET INFORMATION

Get a Quote
Zone 1 / 20 Protection IP68 Temperature -60°C … 130°C Certification ATEX · IECEx · CSA

Categories: Cable Equipment, Ex-proof Cable Gland

Share:

Technical Table

Dual SealAvailable Entry Threads ‘C’Overall Cable Diameter ‘A’Across Flats ‘D’Across Corners ‘D’Protrusion Length ‘B’
StandardOption
Cable Gland OnlyCable Gland with LocknutMetricThread Length (Metric) ‘E’Long Thread Length (Metric) ‘E’NPTThread Length (NPT) ‘E’MinMaxMaxMax
16DTSPe1TA16DTSPe2TNM169.015.03⁄8”11.03.210.019.020.927.0
20DTSPe1TA20DTSPe2TNM2010.015.01⁄2”14.05.514.024.026.230.5
25DTSPe1TA25DTSPe2TNM2510.015.03⁄4”15.09.018.030.032.736.0
32DTSPe1TA32DTSPe2TNM3212.015.01”18.012.525.040.043.641.0
40DTSPe1TA40DTSPe2TNM4012.018.01 1⁄4”18.019.032.050.054.549.0
50DTSPe1TA50DTSPe2TNM5012.018.01 1⁄2”19.022.038.058.063.259.0
63DTSPe1TA63DTSPe2TNM6315.018.02”20.028.048.068.074.164.0
Dimensions displayed in millimeters unless otherwise stated

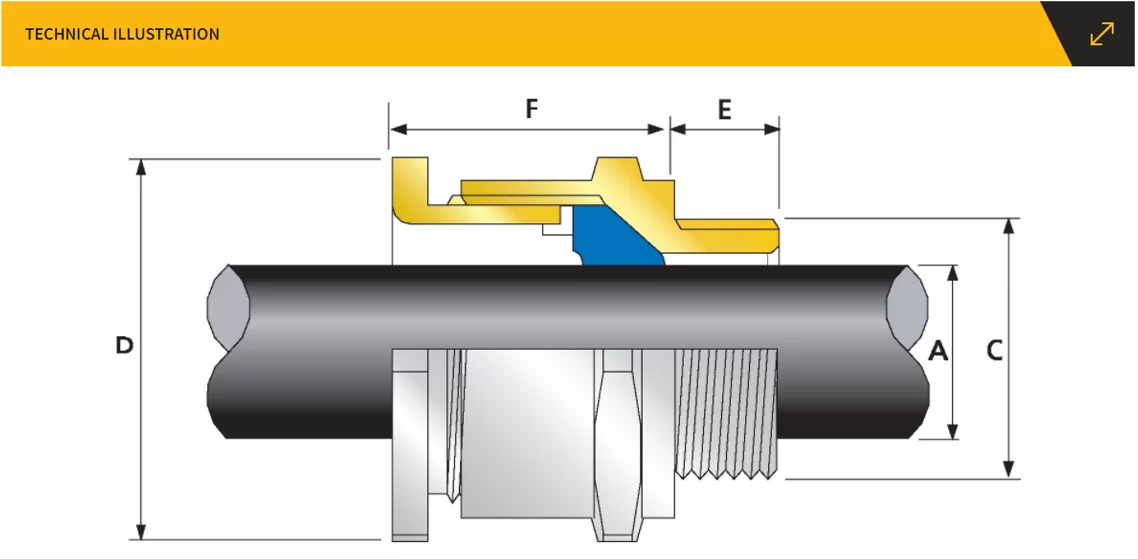

Technical Drawing

Technical Drawing
