CMP Products – E1FW Type Double Seal Armored Ex-proof Cable Gland for Ex-Zone 1, 21 – 2, 22

Technical Details

Ex-proof Zone Class: Zone 1, 21 – Zone 2, 22
Double seal ex-proof cable gland, compatible for armored (steel and aluminum wire armor) cables
Cable gland suitable for use in ex-proof (explosion proof) environments
Body Material: Nickel Plated Brass – Brass – Aluminum
IP Protection Class: IP66 standard, optionally IP67 and IP68
Operating Temperature : -60°C to +130°C standard
Certification group: ATEX, IECEx, CSA, Marine, EAC
Deluge protection feature is optional.

GET INFORMATION

Get a Quote

Zone 1 / 2 / 21 / 22 Protection IP68 Temperature -60°C … 130°C Certification ATEX · IECEx · CSA

Documents 4

TECHNICAL DOCUMENT

CMP Products – E1FW Type Double Tight Armored Ex proof Cable Gland DATASHEET PDF · 459 KB

CERTIFICATES

CMP Products – E1FW Type Double Tight Armored Ex proof Cable Gland Certificates PDF · 459 KB

INSTALLATION INSTRUCTIONS

CMP Products – E1FW Type Double Seal Armored Ex-proof Cable Gland - Operating Instruction PDF · 459 KB CMPPRO1 PDF · 459 KB

Categories: Cable Equipment, Ex-proof Cable Gland, All Cable Equipment

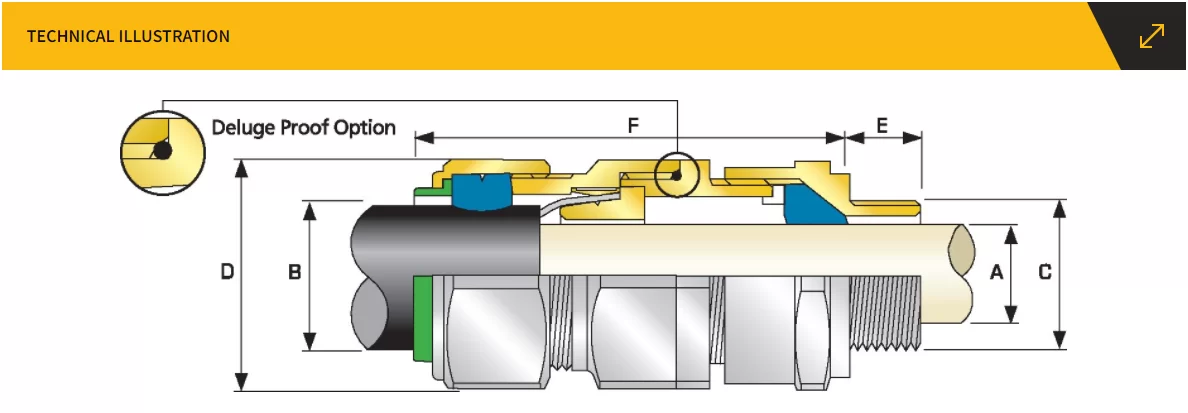

Technical Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ‘A’		Overall Cable Diameter ‘B’		Armour Range		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ‘A’		Overall Cable Diameter ‘B’		Armour Range		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾”	3.1	8.6	6.1	13.1	0.8	1.25	24.0	26.4	72.5	20S16	E1FW	1RA	PVC04	0.16
20S	M20	15.0	½’	19.9	¾”	6.1	11.6	9.5	15.9	0.8	1.25	24.0	26.4	70.0	20S	E1FW	1RA	PVC04	0.15
20	M20	15.0	½’	19.9	¾”	6.5	13.9	12.5	20.9	0.8	1.25	30.5	33.6	73.0	20	E1FW	1RA	PVC06	0.21
25S	M25	15.0	¾’	20.2	1″	11.1	19.9	14.0	22.0	1.25	1.6	37.5	41.3	89.0	25S	E1FW	1RA	PVC09	0.33
25	M25	15.0	¾’	20.2	1″	11.1	19.9	18.2	26.2	1.25	1.6	37.5	41.3	89.0	25	E1FW	1RA	PVC09	0.33
32	M32	15.0	1′	25.0	1 ¼”	17.0	26.2	23.7	33.9	1.6	2.0	46.0	50.6	86.0	32	E1FW	1RA	PVC11	0.43
40	M40	15.0	1 ¼’	25.6	1 ½”	22.0	32.1	27.9	40.4	1.6	2.0	55.0	60.5	90.0	40	E1FW	1RA	PVC15	0.62
50S	M50	15.0	1 ½’	26.1	2″	29.5	38.1	35.2	46.7	2.0	2.5	60.0	66.0	91.0	50S	E1FW	1RA	PVC18	0.75
50	M50	15.0	2′	26.9	2 ½”	35.6	44.0	40.4	53.0	2.0	2.5	70.1	77.1	95.0	50	E1FW	1RA	PVC21	0.95
63S	M63	15.0	2′	26.9	2 ½”	40.1	49.9	45.6	59.4	2.0	2.5	75.0	82.5	102.0	63S	E1FW	1RA	PVC23	1.34
63	M63	15.0	2 ½’	39.9	3″	47.2	55.9	54.6	65.8	2.0	2.5	80.0	88.0	104.0	63	E1FW	1RA	PVC25	1.34
75S	M75	15.0	2 ½’	39.9	3″	52.8	61.9	59.0	72.0	2.0	2.5	90.0	99.0	115.0	75S	E1FW	1RA	PVC28	2.11
75	M75	15.0	3′	41.5	3 ½”	59.1	67.9	66.7	78.4	2.5	3.0	100.0	110.0	117.0	75	E1FW	1RA	PVC30	2.42
90	M90	24.0	3 ½’	42.8	4″	66.6	78.6	76.2	90.3	3.2	4.0	114.3	125.4	147.0	90	E1FW	1RA	PVC32	4.21
100	M100	24.0	3 ½’	42.8	4″	76.0	90.9	86.1	101.4	3.2	4.0	123.0	135.3	140.0	100	E1FW	1RA	LSF33	4.45
115	M115	24.0	4″	44.0	5″	86.0	97.9	101.5	110.2	3.2	4.0	133.4	146.7	162.0	115	E1FW	1RA	LSF34	6.19
130	M130	24.0	5″	46.8	–	97.0	114.9	110.2	123.2	3.2	4.0	152.4	167.6	174.0	130	E1FW	1RA	LSF35	8.34
Dimensions displayed in millimeters unless otherwise stated
