CMP-Products – TRITON (T3CDS) Type Double Seal Armored Ex-proof Cable Gland for Ex-Zone 1, 21 – 2, 22

Technical Details

Ex-proof Zone Class: Zone 1, 21 – Zone 2, 22
Compatible double-seal cable gland for armored (steel and aluminum wire armor) cables
Cable gland suitable for use in ex-proof (explosion proof) environments
Special design to prevent cold flow effects
Deluge protection feature is available as standard
Thanks to its special conical structure, it is suitable for use in all types of mesh and wire armor.
Body Material: Nickel Plated Brass – Solid Brass – Aluminum – Stainless Steel
IP Protection Class: IP66 standard, optionally IP67 and IP68
Operating Temperature: -60°C to +130°C standard
Certification group: ATEX, IECEx, CSA, Marine, EAC

GET INFORMATION

Get a Quote

Zone 1 / 2 / 21 / 22 Protection IP68 Temperature -60°C … 130°C Certification ATEX · IECEx · CSA

Documents 4

TECHNICAL DOCUMENT

CMP PR1 1 PDF · 718 KB

CERTIFICATES

CMP PR1 3 PDF · 718 KB

INSTALLATION INSTRUCTIONS

CMP-Products – TRITON (T3CDS) Type Double Seal Armored Ex-proof Cable Gland - Operating Instruction PDF · 718 KB CMP PR1 2 PDF · 718 KB

Categories: Cable Equipment, Ex-proof Cable Gland, All Cable Equipment

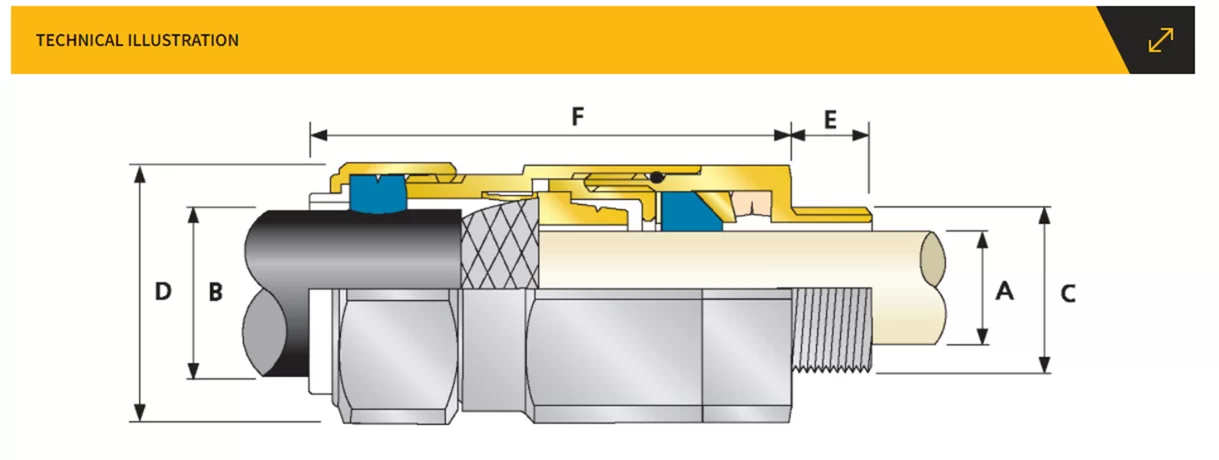

Technical Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ‘A’		Overall Cable Diameter ‘B’		Armour Range				Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ‘A’		Overall Cable Diameter ‘B’		Grooved Cone (X)		Stepped Cone (W)		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Min	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
16	M16	15.0	–	–	–	3.1	8.6	6.1	13.1	0.3	1.0	0.8	1.25	24.0	26.4	78.7	16	T3CDS	1RA	PVC36	0.18
20S16	M20	15.0	½”	19.9	¾”	3.1	8.6	6.1	13.1	0.3	1.0	0.8	1.25	24.0	26.4	78.7	20S16	T3CDS	1RA	PVC36	0.20
20S	M20	15.0	½”	19.9	¾”	6.1	11.6	9.5	15.9	0.3	1.0	0.8	1.25	24.0	26.4	78.7	20S	T3CDS	1RA	PVC36	0.20
20	M20	15.0	½”	19.9	¾”	6.5	13.9	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	76.2	20	T3CDS	1RA	PVC06	0.28
25S	M25	15.0	¾”	20.2	1″	11.1	19.9	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	88.8	25S	T3CDS	1RA	PVC09	0.44
25	M25	15.0	¾”	20.2	1″	11.1	19.9	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	88.7	25	T3CDS	1RA	PVC09	0.44
32	M32	15.0	1″	25.0	1 ¼”	17.0	26.2	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	90.7	32	T3CDS	1RA	PVC11	0.63
40	M40	15.0	1 ¼”	25.6	1 ½”	22.0	32.1	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	93.2	40	T3CDS	1RA	PVC15	0.91
50S	M50	15.0	1 ½”	26.1	2″	29.5	38.1	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	100.7	50S	T3CDS	1RA	PVC18	1.12
50	M50	15.0	2″	26.9	2 ½”	35.6	44.0	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	105.8	50	T3CDS	1RA	PVC21	1.60
63S	M63	15.0	2″	26.9	2 ½”	40.1	49.9	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.5	102.5	63S	T3CDS	1RA	PVC23	1.73
63	M63	15.0	2 ½”	39.9	3″	47.2	55.9	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	105.4	63	T3CDS	1RA	PVC25	1.78
75S	M75	15.0	2 ½”	39.9	3″	52.8	61.9	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	110.6	75S	T3CDS	1RA	PVC28	2.57
75	M75	15.0	3″	41.5	3 ½”	59.1	67.9	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	120.3	75	T3CDS	1RA	PVC30	3.33
90	M90	24.0	3 ½”	42.8	4″	66.6	78.6	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	138.9	90	T3CDS	1RA	PVC32	4.87
100	M100	24.0	3 ½”	42.8	4″	76.0	90.9	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	128.2	100	T3CDS	1RA	LSF33	4.97
115	M115	24.0	4″	44.0	5″	86.0	97.9	101.5	110.2	0.8	1.6	3.15	4.0	138.0	151.8	161.3	115	T3CDS	1RA	LSF34	7.72
130	M130	24.0	5″	46.8	–	97.0	114.9	110.2	123.2	0.8	1.6	3.15	4.0	157.0	172.7	173.3	130	T3CDS	1RA	LSF35	9.78
Dimensions displayed in millimeters unless otherwise stated
